Bonus Tutorial: Function approximation

Week 3, Day 4: Basic Reinforcement Learning (RL)

By Neuromatch Academy

Content creators: Marcelo G Mattar, Eric DeWitt, Matt Krause, Matthew Sargent, Anoop Kulkarni, Sowmya Parthiban, Feryal Behbahani, Jane Wang

Content reviewers: Ella Batty, Byron Galbraith, Michael Waskom, Ezekiel Williams, Mehul Rastogi, Lily Cheng, Roberto Guidotti, Arush Tagade, Kelson Shilling-Scrivo

Production editors: Gagana B, Spiros Chavlis


Tutorial Objectives

This whole notebook contains bonus material to get a better sense of more complex reinforcement learning models as well as real world applications of RL. Previously, we implemented fundemental ideas of RL in basic Python. Here, we will show how these can be implemented using the Acme library by DeepMind. For the project on GitHub see here.

By the end of the tutorial, you should be able to:

  1. Implement, train, and test a NFQ Agent

  2. Use a Deep Q-network

  3. Learn the Policy Gradient and the Actor Critic

  4. Use RL in real-world applications

Tutorial slides

These are the slides for all videos in this tutorial. If you want to locally download the slides, click here.


Setup

Run the following Setup cells in order to set up needed functions. Don’t worry about the code for now!

Note: There is an issue with some images not showing up if you’re using a Safari browser. Please switch to Chrome if this is the case.

Kaggle users: You need to downgrade acme and use acme v. 0.2. So, in the cell below, comment out the three last lines and add:

!pip install dm-acme==0.2 --quiet

Install requirements

# @title Install requirements

# @markdown We install the acme library, see [here](https://github.com/deepmind/acme) for more info.

# @markdown **WARNING:** There may be *errors* and/or *warnings* reported during the installation. However, they should be ignored.

!pip install --upgrade pip --quiet
!pip install imageio --quiet
!pip install imageio-ffmpeg --quiet
!pip install gym --quiet
!pip install enum34 --quiet
!pip install pandas --quiet
!pip install grpcio==1.34.0 --quiet
!pip install typing --quiet
!pip install einops --quiet
!pip install dm-acme[reverb] --quiet
!pip install dm-acme[jax,tensorflow] --quiet
!pip install dm-acme[envs] --quiet
WARNING: dm-acme 0.4.0 does not provide the extra 'reverb'

WARNING: dm-acme 0.4.0 does not provide the extra 'tensorflow'

# Import modules
import gym
import enum
import copy
import time
import acme
import torch
import base64
import dm_env
import IPython
import imageio
import warnings
import itertools
import collections

import numpy as np
import pandas as pd
import matplotlib as mpl
import matplotlib.pyplot as plt

from typing import Sequence

import torch.nn as nn
import torch.optim as optim
import torch.nn.functional as F
from torch.autograd import Variable
from torch.distributions import Categorical

from acme import specs
from acme import wrappers
from acme.utils import tree_utils
from acme.utils import loggers

warnings.filterwarnings('ignore')
np.set_printoptions(precision=3, suppress=1)

Figure settings

# @title Figure settings
import ipywidgets as widgets  # Interactive display
%matplotlib inline
%config InlineBackend.figure_format = 'retina'
plt.style.use("https://raw.githubusercontent.com/NeuromatchAcademy/content-creation/main/nma.mplstyle")
mpl.rc('image', cmap='Blues')

Helper Functions

Implement helpers for value visualisation

# @title Helper Functions
# @markdown Implement helpers for value visualisation

map_from_action_to_subplot = lambda a: (2, 6, 8, 4)[a]
map_from_action_to_name = lambda a: ("up", "right", "down", "left")[a]


def plot_values(values, colormap='pink', vmin=-1, vmax=10):
  """
  Plots incoming values

  Args:
    values: List
      List of values to be plotted
    colormap: String
      Defines colormap of plot
    vmin: Integer
      Smallest possible value within "values"
    vmax: Integer
      Highest possible value within "values"

  Returns:
    Nothing
  """
  plt.imshow(values, interpolation="nearest",
             cmap=colormap, vmin=vmin, vmax=vmax)
  plt.yticks([])
  plt.xticks([])
  plt.colorbar(ticks=[vmin, vmax])


def plot_state_value(state_values, epsilon=0.1):
  """
  Helper function to plot state value

  Args:
    state_values: np.ndarray
      Action values with shape (9, 10, 4)
    epsilon: Float
      Sets the exploitation-exploration control hyperparameter [default=0.1]

  Returns:
    Nothing
  """
  q = state_values
  fig = plt.figure(figsize=(4, 4))
  vmin = np.min(state_values)
  vmax = np.max(state_values)
  v = (1 - epsilon) * np.max(q, axis=-1) + epsilon * np.mean(q, axis=-1)
  plot_values(v, colormap='summer', vmin=vmin, vmax=vmax)
  plt.title("$v(s)$")


def plot_action_values(action_values, epsilon=0.1):
  """
  Helper function to plot action value

  Args:
    action_values: np.ndarray
      Action values with shape (9, 10, 4)
    epsilon: Float
      Sets the exploitation-exploration control hyperparameter [default=0.1]
  Returns:
    Nothing
  """
  q = action_values
  fig = plt.figure(figsize=(8, 8))
  fig.subplots_adjust(wspace=0.3, hspace=0.3)
  vmin = np.min(action_values)
  vmax = np.max(action_values)
  dif = vmax - vmin
  for a in [0, 1, 2, 3]:
    plt.subplot(3, 3, map_from_action_to_subplot(a))

    plot_values(q[..., a], vmin=vmin - 0.05*dif, vmax=vmax + 0.05*dif)
    action_name = map_from_action_to_name(a)
    plt.title(r"$q(s, \mathrm{" + action_name + r"})$")

  plt.subplot(3, 3, 5)
  v = (1 - epsilon) * np.max(q, axis=-1) + epsilon * np.mean(q, axis=-1)
  plot_values(v, colormap='summer', vmin=vmin, vmax=vmax)
  plt.title("$v(s)$")

Set random seed

Executing set_seed(seed=seed) you are setting the seed

# @title Set random seed

# @markdown Executing `set_seed(seed=seed)` you are setting the seed

# For DL its critical to set the random seed so that students can have a
# baseline to compare their results to expected results.
# Read more here: https://pytorch.org/docs/stable/notes/randomness.html

# Call `set_seed` function in the exercises to ensure reproducibility.
import random
import torch

def set_seed(seed=None, seed_torch=True):
  """
  Function that controls randomness. NumPy and random modules must be imported.

  Args:
    seed : Integer
      A non-negative integer that defines the random state. Default is `None`.
    seed_torch : Boolean
      If `True` sets the random seed for pytorch tensors, so pytorch module
      must be imported. Default is `True`.

  Returns:
    Nothing.
  """
  if seed is None:
    seed = np.random.choice(2 ** 32)
  random.seed(seed)
  np.random.seed(seed)
  if seed_torch:
    torch.manual_seed(seed)
    torch.cuda.manual_seed_all(seed)
    torch.cuda.manual_seed(seed)
    torch.backends.cudnn.benchmark = False
    torch.backends.cudnn.deterministic = True

  print(f'Random seed {seed} has been set.')


# In case that `DataLoader` is used
def seed_worker(worker_id):
  """
  DataLoader will reseed workers following randomness in
  multi-process data loading algorithm.

  Args:
    worker_id: integer
      ID of subprocess to seed. 0 means that
      the data will be loaded in the main process
      Refer: https://pytorch.org/docs/stable/data.html#data-loading-randomness for more details

  Returns:
    Nothing
  """
  worker_seed = torch.initial_seed() % 2**32
  np.random.seed(worker_seed)
  random.seed(worker_seed)

Set device (GPU or CPU). Execute set_device()

# @title Set device (GPU or CPU). Execute `set_device()`
# especially if torch modules used.

# Inform the user if the notebook uses GPU or CPU.

def set_device():
  """
  Set the device. CUDA if available, CPU otherwise

  Args:
    None

  Returns:
    Nothing
  """
  device = "cuda" if torch.cuda.is_available() else "cpu"
  if device != "cuda":
    print("WARNING: For this notebook to perform best, "
        "if possible, in the menu under `Runtime` -> "
        "`Change runtime type.`  select `GPU` ")
  else:
    print("GPU is enabled in this notebook.")

  return device
SEED = 2021
set_seed(seed=SEED)
DEVICE = set_device()
Random seed 2021 has been set.
WARNING: For this notebook to perform best, if possible, in the menu under `Runtime` -> `Change runtime type.`  select `GPU`

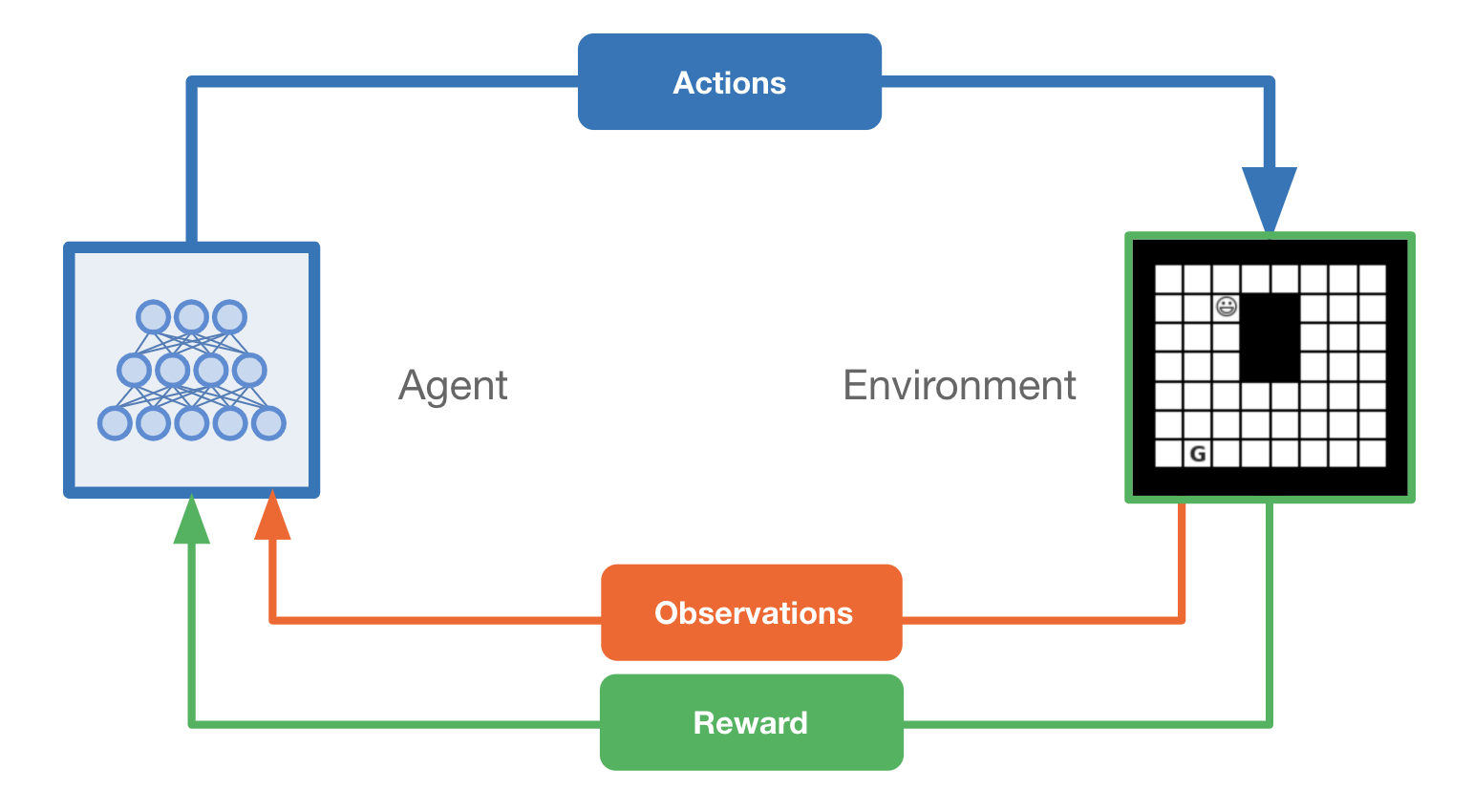

Acme: a research framework for reinforcement learning

Acme is a library of reinforcement learning (RL) agents and agent building blocks by Google DeepMind. Acme strives to expose simple, efficient, and readable agents, that serve both as reference implementations of popular algorithms and as strong baselines, while still providing enough flexibility to do novel research. The design of Acme also attempts to provide multiple points of entry to the RL problem at differing levels of complexity.

For more information see the github’s repository deepmind/acme.

For this practical session, we will focus on a simple grid world environment, which consists of a 9 x 10 grid of wall and empty cells - depicted in black and white, respectively. The smiling agent starts from an initial location and needs to navigate to reach the goal square.

Below you will find an implementation of this Gridworld as a dm_env.Environment.

There is no coding in this section, but if you want, you can look over the provided code so that you can familiarize yourself with an example of how to set up a grid world environment.

Implement GridWorld

Double-click to inspect the contents of this cell.

# @title Implement GridWorld

# @markdown ##### *Double-click* to inspect the contents of this cell.


class ObservationType(enum.IntEnum):
  """
  Class to examine observation type including goal position and state index;
  Attributes:
    observation_type: Enum
        Enum observation type to use. One of:
        * ObservationType.STATE_INDEX: int32 index of agent occupied tile.
        * ObservationType.AGENT_ONEHOT: NxN float32 grid, with a 1 where the
          agent is and 0 elsewhere.
        * ObservationType.GRID: NxNx3 float32 grid of feature channels.
          First channel contains walls (1 if wall, 0 otherwise), second the
          agent position (1 if agent, 0 otherwise) and third goal position
          (1 if goal, 0 otherwise)
        * ObservationType.AGENT_GOAL_POS: float32 tuple with
          (agent_y, agent_x, goal_y, goal_x)
  """
  STATE_INDEX = enum.auto()
  AGENT_ONEHOT = enum.auto()
  GRID = enum.auto()
  AGENT_GOAL_POS = enum.auto()


class GridWorld(dm_env.Environment):
  """
  Build a grid environment.
  Simple gridworld defined by a map layout, a start and a goal state.
  Layout should be a NxN grid, containing:
      * 0: Empty
      * -1: Wall
      * Any other positive value: value indicates reward;
        Episode will terminate
  """

  def __init__(self,
               layout,
               start_state,
               goal_state=None,
               observation_type=ObservationType.STATE_INDEX,
               discount=0.9,
               penalty_for_walls=-5,
               reward_goal=10,
               max_episode_length=None,
               randomize_goals=False):
    """
    Initiates grid environment

    Args:
      layout: List
        NxN array of numbers, indicating the layout of the environment.
      start_state: Tuple
        Tuple (y, x) of starting location.
      goal_state: Tuple
        Optional tuple (y, x) of goal location. Will be randomly
        sampled once if None.
      observation_type: Enum
        Enum observation type to use.
      discount: Float
        Discounting factor included in all Timesteps.
      penalty_for_walls: Integer
        Reward added when hitting a wall (should be negative).
      reward_goal: Integer
        Reward added when finding the goal (should be positive).
      max_episode_length: Integer
        If set, will terminate an episode after this many steps.
      randomize_goals: Boolean
        If true, randomize goal at every episode.

    Returns:
      None
    """
    if observation_type not in ObservationType:
      raise ValueError('observation_type should be a ObservationType instace.')
    self._layout = np.array(layout)
    self._start_state = start_state
    self._state = self._start_state
    self._number_of_states = np.prod(np.shape(self._layout))
    self._discount = discount
    self._penalty_for_walls = penalty_for_walls
    self._reward_goal = reward_goal
    self._observation_type = observation_type
    self._layout_dims = self._layout.shape
    self._max_episode_length = max_episode_length
    self._num_episode_steps = 0
    self._randomize_goals = randomize_goals
    if goal_state is None:
      # Randomly sample goal_state if not provided
      goal_state = self._sample_goal()
    self.goal_state = goal_state

  def _sample_goal(self):
    """
    Randomly sample reachable non-starting state.

    Args:
      None

    Returns:
      Nothing
    """
    # Sample a new goal
    n = 0
    max_tries = 1e5
    while n < max_tries:
      goal_state = tuple(np.random.randint(d) for d in self._layout_dims)
      if goal_state != self._state and self._layout[goal_state] == 0:
        # Reachable state found!
        return goal_state
      n += 1
    raise ValueError('Failed to sample a goal state.')

  @property
  def layout(self):
    return self._layout

  @property
  def number_of_states(self):
    return self._number_of_states

  @property
  def goal_state(self):
    return self._goal_state

  @property
  def start_state(self):
    return self._start_state

  @property
  def state(self):
    return self._state

  def set_state(self, x, y):
    self._state = (y, x)

  def action_spec(self):
    return specs.DiscreteArray(4, dtype=int, name='action')

  @goal_state.setter
  def goal_state(self, new_goal):
    if new_goal == self._state or self._layout[new_goal] < 0:
      raise ValueError('This is not a valid goal!')
    # Zero out any other goal
    self._layout[self._layout > 0] = 0
    # Setup new goal location
    self._layout[new_goal] = self._reward_goal
    self._goal_state = new_goal

  def plot_greedy_policy(self, q):
    greedy_actions = np.argmax(q, axis=2)
    self.plot_policy(greedy_actions)

  def observation_spec(self):
    """
    Function to return the spec-list based on observation type

    Args:
      None

    Returns:
      Specification-list based on observation type
    """
    if self._observation_type is ObservationType.AGENT_ONEHOT:
      return specs.Array(
          shape=self._layout_dims,
          dtype=np.float32,
          name='observation_agent_onehot')
    elif self._observation_type is ObservationType.GRID:
      return specs.Array(
          shape=self._layout_dims + (3,),
          dtype=np.float32,
          name='observation_grid')
    elif self._observation_type is ObservationType.AGENT_GOAL_POS:
      return specs.Array(
          shape=(4, ), dtype=np.float32, name='observation_agent_goal_pos')
    elif self._observation_type is ObservationType.STATE_INDEX:
      return specs.DiscreteArray(
          self._number_of_states, dtype=int, name='observation_state_index')

  def get_obs(self):
    """
    Returns observation initiating agent state, position, goal state

    Args:
      None

    Returns:
      Observation
    """
    if self._observation_type is ObservationType.AGENT_ONEHOT:
      obs = np.zeros(self._layout.shape, dtype=np.float32)
      # Place agent
      obs[self._state] = 1
      return obs
    elif self._observation_type is ObservationType.GRID:
      obs = np.zeros(self._layout.shape + (3,), dtype=np.float32)
      obs[..., 0] = self._layout < 0
      obs[self._state[0], self._state[1], 1] = 1
      obs[self._goal_state[0], self._goal_state[1], 2] = 1
      return obs
    elif self._observation_type is ObservationType.AGENT_GOAL_POS:
      return np.array(self._state + self._goal_state, dtype=np.float32)
    elif self._observation_type is ObservationType.STATE_INDEX:
      y, x = self._state
      return y * self._layout.shape[1] + x

  def reset(self):
    """
    Helper function to reset GridWorld

    Args:
      None

    Returns:
      Reset environment
    """
    self._state = self._start_state
    self._num_episode_steps = 0
    if self._randomize_goals:
      self.goal_state = self._sample_goal()
    return dm_env.TimeStep(
        step_type=dm_env.StepType.FIRST,
        reward=None,
        discount=None,
        observation=self.get_obs())

  def step(self, action):
    """
    Helper function to process current position and
    optimize future steps towards goal

    Args:
      action: Integer
        if 0, move up; if 1, move right; if 2, more down and if 3, move left

    Returns:
      Observation from new position;
    """
    y, x = self._state

    if action == 0:  # Up
      new_state = (y - 1, x)
    elif action == 1:  # Right
      new_state = (y, x + 1)
    elif action == 2:  # Down
      new_state = (y + 1, x)
    elif action == 3:  # Left
      new_state = (y, x - 1)
    else:
      raise ValueError(
          'Invalid action: {} is not 0, 1, 2, or 3.'.format(action))

    new_y, new_x = new_state
    step_type = dm_env.StepType.MID
    if self._layout[new_y, new_x] == -1:  # Wall
      reward = self._penalty_for_walls
      discount = self._discount
      new_state = (y, x)
    elif self._layout[new_y, new_x] == 0:  # Empty cell
      reward = 0.
      discount = self._discount
    else:  # Goal
      reward = self._layout[new_y, new_x]
      discount = 0.
      new_state = self._start_state
      step_type = dm_env.StepType.LAST

    self._state = new_state
    self._num_episode_steps += 1
    if (self._max_episode_length is not None and
        self._num_episode_steps >= self._max_episode_length):
      step_type = dm_env.StepType.LAST
    return dm_env.TimeStep(
        step_type=step_type,
        reward=np.float32(reward),
        discount=discount,
        observation=self.get_obs())

  def plot_grid(self, add_start=True):
    """
    Helper function to plot GridWorld

    Args:
      add_start: Boolean
        if True, add start/goal positions

    Returns:
      Nothing
    """
    plt.figure(figsize=(4, 4))
    plt.imshow(self._layout <= -1, interpolation='nearest')
    ax = plt.gca()
    ax.grid(0)
    plt.xticks([])
    plt.yticks([])
    # Add start/goal
    if add_start:
      plt.text(
          self._start_state[1],
          self._start_state[0],
          r'$\mathbf{S}$',
          fontsize=16,
          ha='center',
          va='center')
    plt.text(
        self._goal_state[1],
        self._goal_state[0],
        r'$\mathbf{G}$',
        fontsize=16,
        ha='center',
        va='center')
    h, w = self._layout.shape
    for y in range(h - 1):
      plt.plot([-0.5, w - 0.5], [y + 0.5, y + 0.5], '-w', lw=2)
    for x in range(w - 1):
      plt.plot([x + 0.5, x + 0.5], [-0.5, h - 0.5], '-w', lw=2)

  def plot_state(self, return_rgb=False):
    """
    Helper function to plot agent state

    Args:
      return_rgb: Boolean
        if True, process GridWorld with number-of-channels = 3

    Returns:
      data: np.ndarray
        Array of size (h, w, 3) describing environment
    """
    self.plot_grid(add_start=False)
    # Add the agent location
    plt.text(
        self._state[1],
        self._state[0],
        r'$\mathbf{A}$',
        fontsize=18,
        ha='center',
        va='center',
    )
    if return_rgb:
      fig = plt.gcf()
      plt.axis('tight')
      plt.subplots_adjust(0, 0, 1, 1, 0, 0)
      fig.canvas.draw()
      data = np.fromstring(fig.canvas.tostring_rgb(), dtype=np.uint8, sep='')
      w, h = fig.canvas.get_width_height()
      data = data.reshape((h, w, 3))
      plt.close(fig)
      return data

  def plot_policy(self, policy):
    """
    Helper function to visualize the policy;

    Args:
      policy: PolicyGradientNet instance
        Describes the principles that govern agent movement

    Returns:
      Nothing
    """
    action_names = [
        r'$\uparrow$', r'$\rightarrow$', r'$\downarrow$', r'$\leftarrow$'
    ]
    self.plot_grid()
    plt.title('Policy Visualization')
    h, w = self._layout.shape
    for y in range(h):
      for x in range(w):
        # if ((y, x) != self._start_state) and ((y, x) != self._goal_state):
        if (y, x) != self._goal_state:
          action_name = action_names[policy[y, x]]
          plt.text(x, y, action_name, ha='center', va='center')


def build_gridworld_task(task,
                         discount=0.9,
                         penalty_for_walls=-5,
                         observation_type=ObservationType.STATE_INDEX,
                         max_episode_length=200):
  """
  Construct a particular Gridworld layout with start/goal states.

  Args:
    task: String
      String name of the task to use. One of {'simple', 'obstacle',
        'random_goal'}.
    discount: Float
      Discounting factor included in all Timesteps.
    penalty_for_walls: Integer
      Reward added when hitting a wall (should be negative).
    observation_type: Enum O
      bservation type to use. One of:
        * ObservationType.STATE_INDEX: int32 index of agent occupied tile.
        * ObservationType.AGENT_ONEHOT: NxN float32 grid, with a 1 where the
          agent is and 0 elsewhere.
        * ObservationType.GRID: NxNx3 float32 grid of feature channels.
          First channel contains walls (1 if wall, 0 otherwise), second the
          agent position (1 if agent, 0 otherwise) and third goal position
          (1 if goal, 0 otherwise)
        * ObservationType.AGENT_GOAL_POS: float32 tuple with
          (agent_y, agent_x, goal_y, goal_x).
    max_episode_length: Integer
      If set, will terminate an episode after this many steps.

  Returns:
    Nothing
  """
  tasks_specifications = {
      'simple': {
          'layout': [
              [-1, -1, -1, -1, -1, -1, -1, -1, -1, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, -1, -1, 0, 0, 0, -1],
              [-1, 0, 0, 0, -1, -1, 0, 0, 0, -1],
              [-1, 0, 0, 0, -1, -1, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, -1, -1, -1, -1, -1, -1, -1, -1, -1],
          ],
          'start_state': (2, 2),
          'goal_state': (7, 2)
      },
      'obstacle': {
          'layout': [
              [-1, -1, -1, -1, -1, -1, -1, -1, -1, -1],
              [-1, 0, 0, 0, 0, 0, -1, 0, 0, -1],
              [-1, 0, 0, 0, -1, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, -1, -1, 0, 0, 0, -1],
              [-1, 0, 0, 0, -1, -1, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, -1, -1, -1, -1, -1, -1, -1, -1, -1],
          ],
          'start_state': (2, 2),
          'goal_state': (2, 8)
      },
      'random_goal': {
          'layout': [
              [-1, -1, -1, -1, -1, -1, -1, -1, -1, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, -1, -1, 0, 0, 0, -1],
              [-1, 0, 0, 0, -1, -1, 0, 0, 0, -1],
              [-1, 0, 0, 0, -1, -1, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, 0, 0, 0, 0, 0, 0, 0, 0, -1],
              [-1, -1, -1, -1, -1, -1, -1, -1, -1, -1],
          ],
          'start_state': (2, 2),
          # 'randomize_goals': True
      },
  }
  return GridWorld(
      discount=discount,
      penalty_for_walls=penalty_for_walls,
      observation_type=observation_type,
      max_episode_length=max_episode_length,
      **tasks_specifications[task])


def setup_environment(environment):
  """
  Returns the environment and its spec.

  Args:
    environment: acme.wrappers.single_precision.SinglePrecisionWrapper instance
      Wrapped environment into single-precision floats [avoids floating point errors]

  Returns:
    environment: acme.wrappers.single_precision.SinglePrecisionWrapper instance
      Wrapped environment into single-precision floats [avoids floating point errors]
    environment_spec: acme.specs.EnvironmentSpec(dm_env.specs.Array instance, dm_env.specs.DiscreteArray instance, dm_env.specs.Array instance, dm_env.specs.BoundedArray instance)
      Descibes specification of the GridWorld Environment
  """

  # Make sure the environment outputs single-precision floats.
  environment = wrappers.SinglePrecisionWrapper(environment)

  # Grab the spec of the environment.
  environment_spec = specs.make_environment_spec(environment)

  return environment, environment_spec

We will use two distinct tabular GridWorlds:

  • simple where the goal is at the bottom left of the grid, little navigation required.

  • obstacle where the goal is behind an obstacle the agent must avoid.

You can visualize the grid worlds by running the cell below.

Note that S indicates the start state and G indicates the goal.

Visualise GridWorlds

# @title Visualise GridWorlds

# Instantiate two tabular environments, a simple task, and one that involves
# the avoidance of an obstacle.
simple_grid = build_gridworld_task(
    task='simple', observation_type=ObservationType.GRID)
obstacle_grid = build_gridworld_task(
    task='obstacle', observation_type=ObservationType.GRID)

# Plot them.
simple_grid.plot_grid()
plt.title('Simple')

obstacle_grid.plot_grid()
plt.title('Obstacle')
plt.show()
../../../_images/W3D4_Tutorial5_29_0.png ../../../_images/W3D4_Tutorial5_29_1.png

In this environment, the agent has four possible actions: up, right, down, and left. The reward is -5 for bumping into a wall, +10 for reaching the goal, and 0 otherwise. The episode ends when the agent reaches the goal, and otherwise continues. The discount on continuing steps, is \(\gamma = 0.9\).

Before we start building an agent to interact with this environment, let’s first look at the types of objects the environment either returns (e.g., observations) or consumes (e.g., actions). The environment_spec will show you the form of the observations, rewards and discounts that the environment exposes and the form of the actions that can be taken.

Look at environment_spec

Note: setup_environment is implemented in the same cell as GridWorld.

# @title Look at `environment_spec`

# @markdown ##### **Note:** `setup_environment` is implemented in the same cell as GridWorld.
environment, environment_spec = setup_environment(simple_grid)

print('actions:\n', environment_spec.actions, '\n')
print('observations:\n', environment_spec.observations, '\n')
print('rewards:\n', environment_spec.rewards, '\n')
print('discounts:\n', environment_spec.discounts, '\n')
actions:
 DiscreteArray(shape=(), dtype=int32, name=action, minimum=0, maximum=3, num_values=4)

observations:
 Array(shape=(9, 10, 3), dtype=dtype('float32'), name='observation_grid')

rewards:
 Array(shape=(), dtype=dtype('float32'), name='reward')

discounts:
 BoundedArray(shape=(), dtype=dtype('float32'), name='discount', minimum=0.0, maximum=1.0)

We first set the environment to its initial state by calling the reset() method which returns the first observation and resets the agent to the starting location.

environment.reset()
environment.plot_state()
../../../_images/W3D4_Tutorial5_35_0.png

Note that A indicates the agent’s location.

Now we want to take an action to interact with the environment. We do this by passing a valid action to the dm_env.Environment.step() method which returns a dm_env.TimeStep namedtuple with fields (step_type, reward, discount, observation).

Let’s take an action and visualise the resulting state of the grid-world. (You’ll need to rerun the cell if you pick a new action.)

Note for kaggle users: As Kaggle does not render the forms automatically the students should be careful to notice the various instructions and manually play around with the values for the variables

Pick an action and see the state changing

# @title Pick an action and see the state changing
action = "down" #@param ["up", "right", "down", "left"] {type:"string"}

action_int = {'up': 0,
              'right': 1,
              'down': 2,
              'left':3 }
action = int(action_int[action])
timestep = environment.step(action)  # pytype: dm_env.TimeStep
environment.plot_state()
../../../_images/W3D4_Tutorial5_39_0.png

Run loop

# @title Run loop

# @markdown ##### This function runs an agent in the environment for a number of episodes, allowing it to learn.

# @markdown ##### *Double-click* to inspect the `run_loop` function.


def run_loop(environment,
             agent,
             num_episodes=None,
             num_steps=None,
             logger_time_delta=1.,
             label='training_loop',
             log_loss=False,
             ):
  """
  Perform the Acme run loop.
  Run the environment loop for `num_episodes` episodes. Each episode is itself
  a loop which interacts first with the environment to get an observation and
  then give that observation to the agent in order to retrieve an action. Upon
  termination of an episode a new episode will be started. If the number of
  episodes is not given then this will interact with the environment
  infinitely.

  Args:
    environment: dm_env
      Used to generate trajectories.
    agent: acme.Actor
      For selecting actions in the run loop.
    num_steps: Integer
      Number of steps to run the loop for. If `None` (default), runs
      without limit.
    num_episodes: Integer
      Nmber of episodes to run the loop for. If `None` (default),
      runs without limit.
    logger_time_delta: Float
      Time interval (in seconds) between consecutive logging steps.
    label: String
      Optional label used at logging steps.
    log_loss: Boolean
      If true, log_loss function is used to compute loss
      Else, use raw loss function

  Returns:
    all_returns: List
      Log of return per episode
  """
  logger = loggers.TerminalLogger(label=label, time_delta=logger_time_delta)
  iterator = range(num_episodes) if num_episodes else itertools.count()
  all_returns = []

  num_total_steps = 0
  for episode in iterator:
    # Reset any counts and start the environment.
    start_time = time.time()
    episode_steps = 0
    episode_return = 0
    episode_loss = 0

    timestep = environment.reset()

    # Make the first observation.
    agent.observe_first(timestep)

    # Run an episode.
    while not timestep.last():
      # Generate an action from the agent's policy and step the environment.
      action = agent.select_action(timestep.observation)
      timestep = environment.step(action)

      # Have the agent observe the timestep and let the agent update itself.
      agent.observe(action, next_timestep=timestep)
      agent.update()

      # Book-keeping.
      episode_steps += 1
      num_total_steps += 1
      episode_return += timestep.reward

      if log_loss:
        episode_loss += agent.last_loss

      if num_steps is not None and num_total_steps >= num_steps:
        break

    # Collect the results and combine with counts.
    steps_per_second = episode_steps / (time.time() - start_time)
    result = {
        'episode': episode,
        'episode_length': episode_steps,
        'episode_return': episode_return,
    }
    if log_loss:
      result['loss_avg'] = episode_loss/episode_steps

    all_returns.append(episode_return)

    # Log the given results.
    logger.write(result)

    if num_steps is not None and num_total_steps >= num_steps:
      break
  return all_returns

Implement the evaluation loop

# @title Implement the evaluation loop

# @markdown ##### This function runs the agent in the environment for a number of episodes, without allowing it to learn, in order to evaluate it.

# @markdown ##### *Double-click* to inspect the `evaluate` function.

def evaluate(environment: dm_env.Environment,
             agent: acme.Actor,
             evaluation_episodes: int):
  """
  Helper function to run evaluation loop

  Args:
    environment: dm_env
      Used to generate trajectories.
    agent: acme.Actor
      For selecting actions in the run loop.
    evaluation_episodes: Integer
      Number of episodes for which evaluation loop is to be run for.

  Returns:
    frames: List
      Log of environment state for each time step.
  """
  frames = []

  for episode in range(evaluation_episodes):
    timestep = environment.reset()
    episode_return = 0
    steps = 0
    while not timestep.last():
      frames.append(environment.plot_state(return_rgb=True))

      action = agent.select_action(timestep.observation)
      timestep = environment.step(action)
      steps += 1
      episode_return += timestep.reward
    print(
        f'Episode {episode} ended with reward {episode_return} in {steps} steps'
    )
  return frames


def display_video(frames: Sequence[np.ndarray],
                  filename: str = 'temp.mp4',
                  frame_rate: int = 12):
  """
  Save and render video.

  Args:
    frames: Sequence[np.ndarray]
      Log of environment state for each time step.
    filename: String
      Name for the video file generated
    frame_rate: Integer
      Specifies frequency at which frames are displayed.

  Returns:
    IPython.display.HTML(video_tag)
  """
  # Write the frames to a video.
  with imageio.get_writer(filename, fps=frame_rate) as video:
    for frame in frames:
      video.append_data(frame)

  # Read video and display the video.
  video = open(filename, 'rb').read()
  b64_video = base64.b64encode(video)
  video_tag = ('<video  width="320" height="240" controls alt="test" '
               'src="data:video/mp4;base64,{0}">').format(b64_video.decode())
  return IPython.display.HTML(video_tag)

Section 1: Function Approximation

Time estimate: ~25mins

Video 1: Function approximation

So far we only considered look-up tables for value-functions. In all previous cases every state and action pair \((\color{red}{s}, \color{blue}{a})\), had an entry in our \(\color{green}Q\)-table. Again, this is possible in this environment as the number of states is equal to the number of cells in the grid. But this is not scalable to situations where, say, the goal location changes or the obstacles are in different locations at every episode (consider how big the table could be in this situation?).

An example (not covered in this tutorial) is ATARI from pixels, where the number of possible frames an agent can see is exponential in the number of pixels on the screen.

portfolio_view

But what we really want is just to be able to compute the Q-value, when fed with a particular \((\color{red}{s}, \color{blue}{a})\) pair. So if we had a way to get a function to do this work instead of keeping a big table, we’d get around this problem.

To address this, we can use function approximation as a way to generalize Q-values over some representation of the very large state space, and train them to output the values they should. In this section, we will explore \(\color{green}Q\)-learning with function approximation, which (although it has been theoretically proven to diverge for some degenerate MDPs) can yield impressive results in very large environments. In particular, we will look at Neural Fitted Q (NFQ) Iteration and Deep Q-Networks (DQN).

Section 1.1 Replay Buffers

An important property of off-policy methods like \(\color{green}Q\)-learning is that they involve two policies: one for exploration and one that is being optimized (via the \(\color{green}Q\)-function updates). This means that we can generate data from the behavior policy and insert that data into some form of data storage—usually referred to as replay.

In order to optimize the \(\color{green}Q\)-function we can then sample data from the replay dataset and use that data to perform an update. An illustration of this learning loop is shown below.

In the next cell we will show how to implement a simple replay buffer. This can be as simple as a python list containing transition data. In more complicated scenarios we might want to have a more performance-tuned variant, we might have to be more concerned about how large replay is and what to do when its full, and we might want to sample from replay in different ways. But a simple python list can go a surprisingly long way.

# Simple replay buffer

# Create a convenient container for the SARSA tuples required by deep RL agents.
Transitions = collections.namedtuple(
    'Transitions', ['state', 'action', 'reward', 'discount', 'next_state'])

class ReplayBuffer(object):
  """
  A simple Python Replay Buffer.
  Queue based implementation.
  """

  def __init__(self, capacity: int = None):
    self.buffer = collections.deque(maxlen=capacity)
    self._prev_state = None

  def add_first(self, initial_timestep: dm_env.TimeStep):
    self._prev_state = initial_timestep.observation

  def add(self, action: int, timestep: dm_env.TimeStep):
    transition = Transitions(
        state=self._prev_state,
        action=action,
        reward=timestep.reward,
        discount=timestep.discount,
        next_state=timestep.observation,
    )
    self.buffer.append(transition)
    self._prev_state = timestep.observation

  def sample(self, batch_size: int) -> Transitions:
    # Sample a random batch of Transitions as a list.
    batch_as_list = random.sample(self.buffer, batch_size)

    # Convert the list of `batch_size` Transitions into a single Transitions
    # object where each field has `batch_size` stacked fields.
    return tree_utils.stack_sequence_fields(batch_as_list)

  def flush(self) -> Transitions:
    entire_buffer = tree_utils.stack_sequence_fields(self.buffer)
    self.buffer.clear()
    return entire_buffer

  def is_ready(self, batch_size: int) -> bool:
    return batch_size <= len(self.buffer)

Section 1.2: NFQ Agent

Neural Fitted Q Iteration was one of the first papers to demonstrate how to leverage recent advances in Deep Learning to approximate the Q-value by a neural network\(^\dagger\). In other words, the value \(\color{green}Q(\color{red}{s}, \color{blue}{a})\) are approximated by the output of a neural network \(\color{green}{Q_w}(\color{red}{s}, \color{blue}{a})\) for each possible action \(\color{blue}{a} \in \color{blue}{\mathcal{A}}\)\(^\ddagger\).

When introducing function approximations, and neural networks in particular, we need to have a loss to optimize. But looking back at the tabular setting above, you can see that we already have some notion of error: the TD error.

By training our neural network to output values such that the TD error is minimized, we will also satisfy the Bellman Optimality Equation, which is a good sufficient condition to enforce, to obtain an optimal policy. Thanks to automatic differentiation, we can just write the TD error as a loss, e.g., with an \(\ell^2\) loss, but others would work too:

(122)\[\begin{equation} L(\color{green}w) = \mathbb{E}\left[ \left( \color{green}{r} + \gamma \max_\color{blue}{a'} \color{green}{Q_w}(\color{red}{s'}, \color{blue}{a'}) \hat{\alpha}' \color{green}{Q_w}(\color{red}{s}, \color{blue}{a}) \right)^2\right]. \end{equation}\]

Then we can compute the gradient with respect to the parameters of the neural network and improve our Q-value approximation incrementally.

NFQ builds on \(\color{green}Q\)-learning, but if one were to update the Q-values online directly, the training can be unstable and very slow. Instead, NFQ uses a replay buffer, similar to what we see implemented above, to update the Q-value in a batched setting.

When it was introduced, it also was entirely off-policy using a uniformly random policy to collect data, which was prone to instability when applied to more complex environments (e.g., when the input are pixels or the tasks are longer and more complicated).

But it is a good stepping stone to the more complex agents used today. Here, we will look at a slightly different and modernised implementation of NFQ.

Below you will find an incomplete NFQ agent that takes in observations from a gridworld. Instead of receiving a tabular state, it receives an observation in the form of its \((x,y)\) coordinates in the gridworld, and the \((x,y)\) coordinates of the goal.

The goal of this coding exercise is to complete this agent by implementing the loss, using mean squared error.



\(^\dagger\) If you read the NFQ paper, they use a “control” notation, where there is a “cost to minimize”, instead of “rewards to maximize”, so don’t be surprised if signs/max/min do not correspond.

\(^\ddagger\) We could feed it \(\color{blue}{a}\) as well and ask \(Q_w\) for a single scalar value, but given we have a fixed number of actions and we usually need to take an \(argmax\) over them, it’s easiest to just output them all in one pass.

Coding Exercise 1.1: Implement NFQ

# Create a convenient container for the SARS tuples required by NFQ.
Transitions = collections.namedtuple(
    'Transitions', ['state', 'action', 'reward', 'discount', 'next_state'])


class NeuralFittedQAgent(acme.Actor):
  """
  Implementation of a Neural Fitted Agent
  """

  def __init__(self,
               environment_spec: specs.EnvironmentSpec,
               q_network: nn.Module,
               replay_capacity: int = 100_000,
               epsilon: float = 0.1,
               batch_size: int = 1,
               learning_rate: float = 3e-4):
    """
    Neural Fitted Agent Initialisation

    Args:
      environment_spec: specs.EnvironmentSpec
        * actions: DiscreteArray(shape=(), dtype=int32, name=action, minimum=0, maximum=3, num_values=4)
        * observations: Array(shape=(9, 10, 3), dtype=dtype('float32'), name='observation_grid')
        * rewards: Array(shape=(), dtype=dtype('float32'), name='reward')
        * discounts: BoundedArray(shape=(), dtype=dtype('float32'), name='discount', minimum=0.0, maximum=1.0)
      q_network: nn.Module,
        Q Network
      replay_capacity: int,
        Capacity of the replay buffer [default: 100000]
      epsilon: float
        Controls the exploration-exploitation tradeoff
      batch_size: int
        Batch Size [default = 1]
      learning_rate: float
        Rate at which the neural fitted agent learns [default = 3e-4]

    Returns:
      Nothing
    """
    # Store agent hyperparameters and network.
    self._num_actions = environment_spec.actions.num_values
    self._epsilon = epsilon
    self._batch_size = batch_size
    self._q_network = q_network

    # Container for the computed loss (see run_loop implementation above).
    self.last_loss = 0.0

    # Create the replay buffer.
    self._replay_buffer = ReplayBuffer(replay_capacity)

    # Setup optimizer that will train the network to minimize the loss.
    self._optimizer = torch.optim.Adam(self._q_network.parameters(), lr=learning_rate)
    self._loss_fn = nn.MSELoss()

  def select_action(self, observation):
    """
    Chooses epsilon-greedy action

    Args:
      observation: enum
        * ObservationType.STATE_INDEX: int32 index of agent occupied tile.
        * ObservationType.AGENT_ONEHOT: NxN float32 grid, with a 1 where the
          agent is and 0 elsewhere.
        * ObservationType.GRID: NxNx3 float32 grid of feature channels.
          First channel contains walls (1 if wall, 0 otherwise), second the
          agent position (1 if agent, 0 otherwise) and third goal position
          (1 if goal, 0 otherwise)
        * ObservationType.AGENT_GOAL_POS: float32 tuple with
          (agent_y, agent_x, goal_y, goal_x)


    Returns:
      action: Integer
        Chosen action based on epsilon-greedy policy
    """
    # Compute Q-values.
    q_values = self._q_network(torch.tensor(observation).unsqueeze(0))  # Adds batch dimension.
    q_values = q_values.squeeze(0)  # Removes batch dimension

    # Select epsilon-greedy action.
    if self._epsilon < torch.rand(1):
      action = q_values.argmax(axis=-1)
    else:
      action = torch.randint(low=0, high=self._num_actions, size=(1, ), dtype=torch.int64).squeeze()
    return action

  def q_values(self, observation):
    q_values = self._q_network(torch.tensor(observation).unsqueeze(0))
    return q_values.squeeze(0).detach()

  def update(self):
    """
    Updates replay buffer

    Args:
      None

    Returns:
      Nothing
    """
    if not self._replay_buffer.is_ready(self._batch_size):
      # If the replay buffer is not ready to sample from, do nothing.
      return

    # Sample a minibatch of transitions from experience replay.
    transitions = self._replay_buffer.sample(self._batch_size)

    # Note: each of these tensors will be of shape [batch_size, ...].
    s = torch.tensor(transitions.state)
    a = torch.tensor(transitions.action)
    r = torch.tensor(transitions.reward)
    d = torch.tensor(transitions.discount)
    next_s = torch.tensor(transitions.next_state)

    # Compute the Q-values at next states in the transitions.
    with torch.no_grad():
      q_next_s = self._q_network(next_s)  # Shape [batch_size, num_actions].
      max_q_next_s = q_next_s.max(axis=-1)[0]
      # Compute the TD error and then the losses.
      target_q_value = r + d * max_q_next_s

    # Compute the Q-values at original state.
    q_s = self._q_network(s)

    # Gather the Q-value corresponding to each action in the batch.
    q_s_a = q_s.gather(1, a.view(-1, 1)).squeeze(0)
    #################################################
    # Fill in missing code below (...),
    # then remove or comment the line below to test your implementation
    raise NotImplementedError("Student exercise: complete the NFQ Agent")
    #################################################
    # TODO Average the squared TD errors over the entire batch using
    # self._loss_fn, which is defined above as nn.MSELoss()
    # HINT: Take a look at the reference for nn.MSELoss here:
    #  https://pytorch.org/docs/stable/generated/torch.nn.MSELoss.html
    #  What should you put for the input and the target?
    loss = ...

    # Compute the gradients of the loss with respect to the q_network variables.
    self._optimizer.zero_grad()

    loss.backward()
    # Apply the gradient update.
    self._optimizer.step()

    # Store the loss for logging purposes (see run_loop implementation above).
    self.last_loss = loss.detach().numpy()

  def observe_first(self, timestep: dm_env.TimeStep):
    self._replay_buffer.add_first(timestep)

  def observe(self, action: int, next_timestep: dm_env.TimeStep):
    self._replay_buffer.add(action, next_timestep)

Click for solution

Train and Evaluate the NFQ Agent

Training the NFQ Agent

# @title Training the NFQ Agent
epsilon = 0.6 # @param {type:"number"}

max_episode_length = 200

# Create the environment.
grid = build_gridworld_task(
    task='simple',
    observation_type=ObservationType.AGENT_GOAL_POS,
    max_episode_length=max_episode_length)
environment, environment_spec = setup_environment(grid)

# Define the neural function approximator (aka Q network).
q_network = nn.Sequential(nn.Linear(4, 50),
                          nn.ReLU(),
                          nn.Linear(50, 50),
                          nn.ReLU(),
                          nn.Linear(50, environment_spec.actions.num_values))

# Build the trainable Q-learning agent
agent = NeuralFittedQAgent(
    environment_spec,
    q_network,
    epsilon=epsilon,
    replay_capacity=100_000,
    batch_size=10,
    learning_rate=1e-3)

returns = run_loop(
    environment=environment,
    agent=agent,
    num_episodes=500,
    logger_time_delta=1.,
    log_loss=True)

Evaluating the agent (set \(\epsilon=0\))

Temporarily change epsilon to be more greedy; remember to change it back.
# @title Evaluating the agent (set $\epsilon=0$)
# @markdown ##### Temporarily change epsilon to be more greedy; remember to change it back.

agent._epsilon = 0.0

# Record a few episodes.
frames = evaluate(environment, agent, evaluation_episodes=5)

# Change epsilon back.
agent._epsilon = epsilon

# Display the video of the episodes.
display_video(frames, frame_rate=6)
Episode 0 ended with reward -990.0 in 200 steps
Episode 1 ended with reward -990.0 in 200 steps
Episode 2 ended with reward -990.0 in 200 steps
Episode 3 ended with reward -990.0 in 200 steps
Episode 4 ended with reward -990.0 in 200 steps

Visualise the learned \(Q\) values

Evaluate the policy for every state, similar to tabular agents above.
# @title Visualise the learned $Q$ values

# @markdown ##### Evaluate the policy for every state, similar to tabular agents above.

environment.reset()
pi = np.zeros(grid._layout_dims, dtype=np.int32)
q = np.zeros(grid._layout_dims + (4, ))
for y in range(grid._layout_dims[0]):
  for x in range(grid._layout_dims[1]):
    # Hack observation to see what the Q-network would output at that point.
    environment.set_state(x, y)
    obs = environment.get_obs()
    q[y, x] = np.asarray(agent.q_values(obs))
    pi[y, x] = np.asarray(agent.select_action(obs))

plot_action_values(q)
../../../_images/W3D4_Tutorial5_62_0.png

Compare the Q-values approximated with the neural network with the tabular case. Notice how the neural network is generalizing from the visited states to the unvisited similar states, while in the tabular case we updated the value of each state only when we visited that state.

Compare the greedy and behaviour (\(\epsilon\)-greedy) policies

Compare the greedy policy with the agent’s policy

Notice that the agent’s behavior policy has a lot more randomness, due to the high \(\epsilon\). However, the greedy policy that’s learned is optimal.
# @title Compare the greedy policy with the agent's policy

# @markdown ##### Notice that the agent's behavior policy has a lot more randomness, due to the high $\epsilon$. However, the greedy policy that's learned is optimal.

environment.plot_greedy_policy(q)
plt.figtext(-.08, .95, 'Greedy policy using the learnt Q-values')
plt.title('')
plt.show()

environment.plot_policy(pi)
plt.figtext(-.08, .95, "Policy using the agent's behavior policy")
plt.title('')
plt.show()
../../../_images/W3D4_Tutorial5_67_0.png ../../../_images/W3D4_Tutorial5_67_1.png

Section 2: Deep Q-Networks (DQN)

Time estimate: ~30mins

Video 2: Deep Q-Networks (DQN)

Adopted from Mnih et al., 2015

In this section, we will look at an advanced deep RL Agent based on the following publication, Playing Atari with Deep Reinforcement Learning, which introduced the first deep learning model to successfully learn control policies directly from high-dimensional pixel inputs using RL.

Here the agent will act directly on a pixel representation of the gridworld. You can find an incomplete implementation below.

Coding Exercise 2.1: Run a DQN Agent

class DQN(acme.Actor):
  """
  Implementation of a Deep Q Network Agent
  """

  def __init__(self,
               environment_spec: specs.EnvironmentSpec,
               network: nn.Module,
               replay_capacity: int = 100_000,
               epsilon: float = 0.1,
               batch_size: int = 1,
               learning_rate: float = 5e-4,
               target_update_frequency: int = 10):
    """
    DQN Based Agent Initialisation

    Args:
      environment_spec: specs.EnvironmentSpec
        * actions: DiscreteArray(shape=(), dtype=int32, name=action, minimum=0, maximum=3, num_values=4)
        * observations: Array(shape=(9, 10, 3), dtype=dtype('float32'), name='observation_grid')
        * rewards: Array(shape=(), dtype=dtype('float32'), name='reward')
        * discounts: BoundedArray(shape=(), dtype=dtype('float32'), name='discount', minimum=0.0, maximum=1.0)
      network: nn.Module
        Deep Q Network
      replay_capacity: int
        Capacity of the replay buffer [default: 100000]
      epsilon: float
        Controls the exploration-exploitation tradeoff
      batch_size: int
        Batch Size [default = 1]
      learning_rate: float
        Rate at which the neural fitted agent learns [default = 3e-4]
      target_update_frequency: int
        Frequency with which target network is updated

    Returns:
      Nothing
    """
    # Store agent hyperparameters and network.
    self._num_actions = environment_spec.actions.num_values
    self._epsilon = epsilon
    self._batch_size = batch_size
    self._q_network = q_network

    # Create a second q net with the same structure and initial values, which
    # we'll be updating separately from the learned q-network.
    self._target_network = copy.deepcopy(self._q_network)

    # Container for the computed loss (see run_loop implementation above).
    self.last_loss = 0.0

    # Create the replay buffer.
    self._replay_buffer = ReplayBuffer(replay_capacity)
    # Keep an internal tracker of steps
    self._current_step = 0

    # How often to update the target network
    self._target_update_frequency = target_update_frequency
    # Setup optimizer that will train the network to minimize the loss.
    self._optimizer = torch.optim.Adam(self._q_network.parameters(), lr=learning_rate)
    self._loss_fn = nn.MSELoss()

  def select_action(self, observation):
    """
    Action Selection Algorithm

    Args:
      observation: enum
        * ObservationType.STATE_INDEX: int32 index of agent occupied tile.
        * ObservationType.AGENT_ONEHOT: NxN float32 grid, with a 1 where the
          agent is and 0 elsewhere.
        * ObservationType.GRID: NxNx3 float32 grid of feature channels.
          First channel contains walls (1 if wall, 0 otherwise), second the
          agent position (1 if agent, 0 otherwise) and third goal position
          (1 if goal, 0 otherwise)
        * ObservationType.AGENT_GOAL_POS: float32 tuple with
          (agent_y, agent_x, goal_y, goal_x)

    Returns:
      action: Integer
        Chosen random action
    """
    # Compute Q-values.
    # Sonnet requires a batch dimension, which we squeeze out right after.
    q_values = self._q_network(torch.tensor(observation).unsqueeze(0))  # Adds batch dimension.
    q_values = q_values.squeeze(0)  # Removes batch dimension

    # Select epsilon-greedy action.
    if self._epsilon < torch.rand(1):
      action = q_values.argmax(axis=-1)
    else:
      action = torch.randint(low=0, high=self._num_actions , size=(1, ), dtype=torch.int64).squeeze()
    return action

  def q_values(self, observation):
    q_values = self._q_network(torch.tensor(observation).unsqueeze(0))
    return q_values.squeeze(0).detach()

  def update(self):
    """
    Updates replay buffer

    Args:
      None

    Returns:
      Nothing
    """
    self._current_step += 1

    if not self._replay_buffer.is_ready(self._batch_size):
      # If the replay buffer is not ready to sample from, do nothing.
      return

    # Sample a minibatch of transitions from experience replay.
    transitions = self._replay_buffer.sample(self._batch_size)

    # Optionally unpack the transitions to lighten notation.
    # Note: each of these tensors will be of shape [batch_size, ...].
    s = torch.tensor(transitions.state)
    a = torch.tensor(transitions.action)
    r = torch.tensor(transitions.reward)
    d = torch.tensor(transitions.discount)
    next_s = torch.tensor(transitions.next_state)

    # Compute the Q-values at next states in the transitions.
    with torch.no_grad():
      #################################################
      # Fill in missing code below (...),
      # then remove or comment the line below to test your implementation
      raise NotImplementedError("Student exercise: complete the DQN Agent")
      #################################################
      #TODO get the value of the next states evaluated by the target network
      # HINT: use self._target_network, defined above.
      q_next_s = ...  # Shape [batch_size, num_actions].

      max_q_next_s = q_next_s.max(axis=-1)[0]
      # Compute the TD error and then the losses.
      target_q_value = r + d * max_q_next_s

    # Compute the Q-values at original state.
    q_s = self._q_network(s)

    # Gather the Q-value corresponding to each action in the batch.
    q_s_a = q_s.gather(1, a.view(-1, 1)).squeeze(0)

    # Average the squared TD errors over the entire batch
    loss = self._loss_fn(target_q_value, q_s_a)

    # Compute the gradients of the loss with respect to the q_network variables.
    self._optimizer.zero_grad()

    loss.backward()
    # Apply the gradient update.
    self._optimizer.step()

    if self._current_step % self._target_update_frequency == 0:
      self._target_network.load_state_dict(self._q_network.state_dict())
    # Store the loss for logging purposes (see run_loop implementation above).
    self.last_loss = loss.detach().numpy()

  def observe_first(self, timestep: dm_env.TimeStep):
    self._replay_buffer.add_first(timestep)

  def observe(self, action: int, next_timestep: dm_env.TimeStep):
    self._replay_buffer.add(action, next_timestep)


# Create a convenient container for the SARS tuples required by NFQ.
Transitions = collections.namedtuple(
    'Transitions', ['state', 'action', 'reward', 'discount', 'next_state'])

Click for solution

Train and evaluate the DQN agent

# @title Train and evaluate the DQN agent

epsilon = 0.25  # @param {type: "number"}
num_episodes = 500  # @param {type: "integer"}
max_episode_length = 50  # @param {type: "integer"}

grid = build_gridworld_task(
    task='simple',
    observation_type=ObservationType.GRID,
    max_episode_length=max_episode_length)
environment, environment_spec = setup_environment(grid)

class Permute(nn.Module):
  """
  Build Agent's Network
  """
  def __init__(self, order: list):
    super(Permute,self).__init__()
    self.order = order

  def forward(self, x):
    return x.permute(self.order)

q_network = nn.Sequential(Permute([0, 3, 1, 2]),
                          nn.Conv2d(3, 32, kernel_size=4,
                                    stride=2,padding=1),
                          nn.ReLU(),
                          nn.Conv2d(32, 64, kernel_size=3,
                                    stride=1, padding=1),
                          nn.ReLU(),
                          nn.MaxPool2d(3, 1),
                          nn.Flatten(),
                          nn.Linear(384, 50),
                          nn.ReLU(),
                          nn.Linear(50, environment_spec.actions.num_values)
                          )

agent = DQN(
    environment_spec=environment_spec,
    network=q_network,
    batch_size=10,
    epsilon=epsilon,
    target_update_frequency=25)

returns = run_loop(
    environment=environment,
    agent=agent,
    num_episodes=num_episodes,
    num_steps=100000)

Visualise the learned \(Q\) values

Evaluate the policy for every state, similar to tabular agents above.
# @title Visualise the learned $Q$ values
# @markdown ##### Evaluate the policy for every state, similar to tabular agents above.

pi = np.zeros(grid._layout_dims, dtype=np.int32)
q = np.zeros(grid._layout_dims + (4,))
for y in range(grid._layout_dims[0]):
  for x in range(grid._layout_dims[1]):
    # Hack observation to see what the Q-network would output at that point.
    environment.set_state(x, y)
    obs = environment.get_obs()
    q[y, x] = np.asarray(agent.q_values(obs))
    pi[y, x] = np.asarray(agent.select_action(obs))

plot_action_values(q)
../../../_images/W3D4_Tutorial5_79_0.png

Compare the greedy policy with the agent’s policy

# @title Compare the greedy policy with the agent's policy

environment.plot_greedy_policy(q)
plt.figtext(-.08, .95, "Greedy policy using the learnt Q-values")
plt.title('')
plt.show()

environment.plot_policy(pi)
plt.figtext(-.08, .95, "Policy using the agent's epsilon-greedy policy")
plt.title('')
plt.show()
../../../_images/W3D4_Tutorial5_81_0.png ../../../_images/W3D4_Tutorial5_81_1.png

Note: You get a better estimate of the value functions if you increase num_episodes and max_episode_length, but this will take longer to train. Feel free to play around after the day!


Section 3: Learning the policy directly

Time estimate: ~25mins

Video 3: Other Deep RL Methods

Cartpole task

Here we switch to training on a different kind of task, which has a continuous action space: Cartpole in Gym. As you recall from the video, policy-based methods are particularly well-suited for these kinds of tasks. We will be exploring two of those methods below.


Make a CartPole environment, gym.make('CartPole-v1')

# @title Make a CartPole environment, `gym.make('CartPole-v1')`
env = gym.make('CartPole-v1')

# Set seeds
env.seed(SEED)
set_seed(SEED)
---------------------------------------------------------------------------
AttributeError                            Traceback (most recent call last)
/tmp/ipykernel_47223/788376341.py in <module>
      3
      4 # Set seeds
----> 5 env.seed(SEED)
      6 set_seed(SEED)

/opt/hostedtoolcache/Python/3.7.13/x64/lib/python3.7/site-packages/gym/core.py in __getattr__(self, name)
    239         if name.startswith("_"):
    240             raise AttributeError(f"accessing private attribute '{name}' is prohibited")
--> 241         return getattr(self.env, name)
    242
    243     @property

/opt/hostedtoolcache/Python/3.7.13/x64/lib/python3.7/site-packages/gym/core.py in __getattr__(self, name)
    239         if name.startswith("_"):
    240             raise AttributeError(f"accessing private attribute '{name}' is prohibited")
--> 241         return getattr(self.env, name)
    242
    243     @property

/opt/hostedtoolcache/Python/3.7.13/x64/lib/python3.7/site-packages/gym/core.py in __getattr__(self, name)
    239         if name.startswith("_"):
    240             raise AttributeError(f"accessing private attribute '{name}' is prohibited")
--> 241         return getattr(self.env, name)
    242
    243     @property

AttributeError: 'CartPoleEnv' object has no attribute 'seed'

Section 3.1: Policy gradient

Now we will turn to policy gradient methods. Rather than defining the policy in terms of a value function, i.e., \(\color{blue}\pi(\color{red}s) = \arg\max_{\color{blue}a}\color{green}Q(\color{red}s, \color{blue}a)\), we will directly parameterize the policy and write it as the distribution

(123)\[\begin{equation} \color{blue}a_t \sim \color{blue}\pi_{\theta}(\color{blue}a_t|\color{red}s_t). \end{equation}\]

Here \(\theta\) represent the parameters of the policy. We will update the policy parameters using gradient ascent to maximize expected future reward.

One convenient way to represent the conditional distribution above is as a function that takes a state \(\color{red}s\) and returns a distribution over actions \(\color{blue}a\).

Defined below is an agent which implements the REINFORCE algorithm. REINFORCE (Williams, 1992) is the simplest model-free general reinforcement learning technique.

The basic idea is to use probabilistic action choice. If the reward at the end turns out to be high, we make all actions in this sequence more likely (otherwise, we do the opposite).

This strategy could reinforce “bad” actions as well, however they will turn out to be part of trajectories with low reward and will likely not get accentuated.

From the lectures, we know that we need to compute

(124)\[\begin{equation} \nabla J(\theta) = \mathbb{E} \left[ \sum_{t=0}^T \color{green} G_t \nabla\log\color{blue}\pi_\theta(\color{red}{s_t}) \right] \end{equation}\]

where \(\color{green} G_t\) is the sum over future rewards from time \(t\), defined as

(125)\[\begin{equation} \color{green} G_t = \sum_{n=t}^T \gamma^{n-t} \color{green} R(\color{red}{s_t}, \color{blue}{a_t}, \color{red}{s_{t+1}}). \end{equation}\]

The algorithm below will collect the state, action, and reward data in its buffer until it reaches a full trajectory. It will then update its policy given the above gradient (and the Adam optimizer).

A policy gradient trains an agent without explicitly mapping the value for every state-action pair in an environment by taking small steps and updating the policy based on the reward associated with that step. In this section, we will build a small network that trains using policy gradient using PyTorch.

The agent can receive a reward immediately for an action or it can receive the award at a later time such as the end of the episode.

The policy function our agent will try to learn is \(\pi_\theta(a,s)\), where \(\theta\) is the parameter vector, \(s\) is a particular state, and \(a\) is an action.

Monte-Carlo Policy Gradient approach will be used, which means the agent will run through an entire episode and then update policy based on the rewards obtained.

Set the hyperparameters for Policy Gradient

Only used in Policy Gradient Method:

# @title Set the hyperparameters for Policy Gradient

num_steps = 300

learning_rate = 0.01  # @param {type:"number"}
gamma = 0.99  # @param {type:"number"}
dropout = 0.6 # @param {type:"number"}

# @markdown Only used in Policy Gradient Method:
hidden_neurons = 128  # @param {type:"integer"}

Coding Exercise 3.1: Creating a simple neural network

Below you will find some incomplete code. Fill in the missing code to construct the specified neural network.

Let us define a simple feed forward neural network with one hidden layer of \(128\) neurons and a dropout of \(0.6\). Let’s use Adam as our optimizer and a learning rate of \(0.01\). Use the hyperparameters already defined rather than using explicit values.

Using dropout will significantly improve the performance of the policy. Do compare your results with and without dropout and experiment with other hyper-parameter values as well.

class PolicyGradientNet(nn.Module):
  """
  Defines Policy Gradient Network with the following attributes:
    Feed Forward Network with a single hidden layer
    width: 128 neurons
    dropout: 0.6
    Optimizer: Adam
    Learning Rate: 0.01
  """

  def __init__(self):
    """
    Initiate Policy Gradient Network with above mentioned parameters/hyperparameters

    Args:
      None

    Returns:
      Nothing
    """
    super(PolicyGradientNet, self).__init__()
    self.state_space = env.observation_space.shape[0]
    self.action_space = env.action_space.n
    #################################################
    ## TODO for students: Define two linear layers
    ## from the first expression
    raise NotImplementedError("Student exercise: Create FF neural network.")
    #################################################
    # HINT: you can construct linear layers using nn.Linear(); what are the
    # sizes of the inputs and outputs of each of the layers? Also remember
    # that you need to use hidden_neurons (see hyperparameters section above).
    #   https://pytorch.org/docs/stable/generated/torch.nn.Linear.html
    self.l1 = ...
    self.l2 = ...

    self.gamma = gamma
    # Episode policy and past rewards
    self.past_policy = Variable(torch.Tensor())
    self.reward_episode = []
    # Overall reward and past loss
    self.past_reward = []
    self.past_loss = []

  def forward(self, x):
    model = torch.nn.Sequential(
        self.l1,
        nn.Dropout(p=dropout),
        nn.ReLU(),
        self.l2,
        nn.Softmax(dim=-1)
    )
    return model(x)

Click for solution

Now let’s create an instance of the network we have defined and use Adam as the optimizer using the learning_rate as hyperparameter already defined above.

policy = PolicyGradientNet()
pg_optimizer = optim.Adam(policy.parameters(), lr=learning_rate)

Select Action

The select_action() function chooses an action based on our policy probability distribution using the PyTorch distributions package. Our policy returns a probability for each possible action in our action space (move left or move right) as an array of length two such as \([0.7, 0.3]\). We then choose an action based on these probabilities, record our history, and return our action.

def select_action(state):
  """
  Select an action (0 or 1) by running policy model and choosing based on the probabilities in state;

  Args:
    state: np.ndarray
      Describes Agent's state

  Returns:
    action:
      Returns chosen action based on policy's probability distribution
  """
  state = torch.from_numpy(state).type(torch.FloatTensor)
  state = policy(Variable(state))
  c = Categorical(state)
  action = c.sample()

  # Add log probability of chosen action
  if policy.past_policy.dim() != 0:
    policy.past_policy = torch.cat([policy.past_policy, c.log_prob(action).reshape(1)])
  else:
    policy.past_policy = (c.log_prob(action).reshape(1))
  return action

Update policy

This function updates the policy.

Reward \(G_t\)

We update our policy by taking a sample of the action value function \(Q^{\pi_\theta} (s_t,a_t)\) by playing through episodes of the game. \(Q^{\pi_\theta} (s_t,a_t)\) is defined as the expected return by taking action \(a\) in state \(s\) following policy \(\pi\).

We know that for every step the simulation continues we receive a reward of \(1\). We can use this to calculate the policy gradient at each time step, where \(r\) is the reward for a particular state-action pair. Rather than using the instantaneous reward, \(r\), we instead use a long term reward \(v_{t}\) where \(v_t\) is the discounted sum of all future rewards for the length of the episode. \(v_{t}\) is then,

(126)\[\begin{equation} \color{green} G_t = \sum_{n=t}^T \gamma^{n-t} \color{green} R(\color{red}{s_t}, \color{blue}{a_t}, \color{red}{s_{t+1}}). \end{equation}\]

where \(\gamma\) is the discount factor (\(0.99\)). For example, if an episode lasts 5 steps, the reward for each step will be \([4.90, 3.94, 2.97, 1.99, 1]\). Next we scale our reward vector by substracting the mean from each element and scaling to unit variance by dividing by the standard deviation. This practice is common for machine learning applications and the same operation as Scikit Learn’s StandardScaler. It also has the effect of compensating for future uncertainty.

Update Policy: equation

After each episode we apply Monte-Carlo Policy Gradient to improve our policy according to the equation:

(127)\[\begin{equation} \Delta\theta_t = \alpha\nabla_\theta \, \log \pi_\theta (s_t,a_t)G_t \end{equation}\]

We will then feed our policy history multiplied by our rewards to our optimizer and update the weights of our neural network using stochastic gradient ascent. This should increase the likelihood of actions that got our agent a larger reward.

The following function update_policy updates the network weights and therefore the policy.

def update_policy():
  """
  Helper function to update network weights and policy

  Args:
    None

  Returns:
    Nothing
  """
  R = 0
  rewards = []

  # Discount future rewards back to the present using gamma
  for r in policy.reward_episode[::-1]:
    R = r + policy.gamma * R
    rewards.insert(0, R)

  # Scale rewards
  rewards = torch.FloatTensor(rewards)
  rewards = (rewards - rewards.mean()) / (rewards.std() +
                                          np.finfo(np.float32).eps)

  # Calculate loss
  pg_loss = (torch.sum(torch.mul(policy.past_policy,
                              Variable(rewards)).mul(-1), -1))

  # Update network weights
  # Use zero_grad(), backward() and step() methods of the optimizer instance.
  pg_optimizer.zero_grad()
  pg_loss.backward()

  # Update the weights
  for param in policy.parameters():
      param.grad.data.clamp_(-1, 1)
  pg_optimizer.step()

  # Save and intialize episode past counters
  policy.past_loss.append(pg_loss.item())
  policy.past_reward.append(np.sum(policy.reward_episode))
  policy.past_policy = Variable(torch.Tensor())
  policy.reward_episode= []

Training

This is our main policy training loop. For each step in a training episode, we choose an action, take a step through the environment, and record the resulting new state and reward. We call update_policy() at the end of each episode to feed the episode history to our neural network and improve our policy.

def policy_gradient_train(episodes):
  """
  Helper function to train policy gradient network

  Args:
    episodes: List
      Log of state per episode

  Returns:
    Nothing
  """
  running_reward = 10
  for episode in range(episodes):
    state = env.reset()
    done = False

    for time in range(1000):
      action = select_action(state)
      # Step through environment using chosen action
      state, reward, done, _ = env.step(action.item())

      # Save reward
      policy.reward_episode.append(reward)
      if done:
        break

    # Used to determine when the environment is solved.
    running_reward = (running_reward * gamma) + (time * (1 - gamma))

    update_policy()

    if episode % 50 == 0:
      print(f"Episode {episode}\tLast length: {time:5.0f}"
            f"\tAverage length: {running_reward:.2f}")

    if running_reward > env.spec.reward_threshold:
      print(f"Solved! Running reward is now {running_reward} "
            f"and the last episode runs to {time} time steps!")
      break

Run the model

episodes = 500   # @param {type:"integer"}
policy_gradient_train(episodes)
---------------------------------------------------------------------------
TypeError                                 Traceback (most recent call last)
/tmp/ipykernel_47223/1015231315.py in <module>
      1 episodes = 500   # @param {type:"integer"}
----> 2 policy_gradient_train(episodes)

/tmp/ipykernel_47223/4092339584.py in policy_gradient_train(episodes)
     16
     17     for time in range(1000):
---> 18       action = select_action(state)
     19       # Step through environment using chosen action
     20       state, reward, done, _ = env.step(action.item())

/tmp/ipykernel_47223/1603330273.py in select_action(state)
     11       Returns chosen action based on policy's probability distribution
     12   """
---> 13   state = torch.from_numpy(state).type(torch.FloatTensor)
     14   state = policy(Variable(state))
     15   c = Categorical(state)

TypeError: expected np.ndarray (got tuple)

Plot the results

Plot the training performance for policy gradient

# @title Plot the training performance for policy gradient

def plot_policy_gradient_training():
  """
  Helper function to plot the training performance
  of policy gradient network

  Args:
    None

  Returns:
    Nothing
  """
  window = int(episodes / 20)

  fig, ((ax1), (ax2)) = plt.subplots(1, 2, sharey=True, figsize=[15, 4]);
  rolling_mean = pd.Series(policy.past_reward).rolling(window).mean()
  std = pd.Series(policy.past_reward).rolling(window).std()
  ax1.plot(rolling_mean)
  ax1.fill_between(range(len(policy.past_reward)),
                   rolling_mean-std, rolling_mean+std,
                   color='orange', alpha=0.2)
  ax1.set_title(f"Episode Length Moving Average ({window}-episode window)")
  ax1.set_xlabel('Episode'); ax1.set_ylabel('Episode Length')

  ax2.plot(policy.past_reward)
  ax2.set_title('Episode Length')
  ax2.set_xlabel('Episode')
  ax2.set_ylabel('Episode Length')

  fig.tight_layout(pad=2)
  plt.show()

plot_policy_gradient_training()

Exercise 3.1: Explore different hyperparameters.

Try running the model again, by modifying the hyperparameters and observe the outputs. Be sure to rerun the function definition cells in order to pick up on the updated values.

What do you see when you

  1. increase learning rate

  2. decrease learning rate

  3. decrease gamma (\(\gamma\))

  4. increase number of hidden neurons in the network

Section 3.2: Actor-critic

Recall the policy gradient

(128)\[\begin{equation} \nabla J(\theta) = \mathbb{E} \left[ \sum_{t=0}^T \color{green} G_t \nabla\log\color{blue}\pi_\theta(\color{red}{s_t}) \right] \end{equation}\]

The policy parameters are updated using Monte Carlo technique and uses random samples. This introduces high variability in log probabilities and cumulative reward values. This leads to noisy gradients and can cause unstable learning.

One way to reduce variance and increase stability is subtracting the cumulative reward by a baseline:

(129)\[\begin{equation} \nabla J(\theta) = \mathbb{E} \left[ \sum_{t=0}^T \color{green} (G_t - b) \nabla\log\color{blue}\pi_\theta(\color{red}{s_t}) \right] \end{equation}\]

Intuitively, reducing cumulative reward will make smaller gradients and thus smaller and more stable (hopefully) updates.

From the lecture slides, we know that in Actor Critic Method:

  1. The Critic estimates the value function. This could be the action-value (the Q value) or state-value (the V value).

  2. The Actor updates the policy distribution in the direction suggested by the Critic (such as with policy gradients).

Both the Critic and Actor functions are parameterized with neural networks. The “Critic” network parameterizes the Q-value.

Set the hyperparameters for Actor Critic

# @title Set the hyperparameters for Actor Critic

learning_rate = 0.01  # @param {type:"number"}
gamma = 0.99  # @param {type:"number"}
dropout = 0.6

# Only used in Actor-Critic Method
hidden_size = 256  # @param {type:"integer"}

num_steps = 300

Actor Critic Network

class ActorCriticNet(nn.Module):
  """
  Build Actor Critic Network
  """

  def __init__(self, num_inputs, num_actions, hidden_size, learning_rate=3e-4):
    """
    Initiate Actor Critic Network

    Args:
      num_inputs: int
        Number of inputs incoming into the Network
      num_actions: int
        Number of actions
      hidden_size: int
        Size of hidden layer in the network
      learning_rate: Float
        Learning rate of Actor Critic Network

    Returns:
      Nothing
    """
    super(ActorCriticNet, self).__init__()

    self.num_actions = num_actions
    self.critic_linear1 = nn.Linear(num_inputs, hidden_size)
    self.critic_linear2 = nn.Linear(hidden_size, 1)

    self.actor_linear1 = nn.Linear(num_inputs, hidden_size)
    self.actor_linear2 = nn.Linear(hidden_size, num_actions)

    self.all_rewards = []
    self.all_lengths = []
    self.average_lengths = []

  def forward(self, state):
    """
    Describes forward pass of Actor Critic Network

    Args:
      state: np.ndarray
        Describes state

    Returns:
      Value and Policy Distribution
    """
    state = Variable(torch.from_numpy(state).float().unsqueeze(0))
    value = F.relu(self.critic_linear1(state))
    value = self.critic_linear2(value)

    policy_dist = F.relu(self.actor_linear1(state))
    policy_dist = F.softmax(self.actor_linear2(policy_dist), dim=1)

    return value, policy_dist

Training

def actor_critic_train(episodes):
  """
  Helper function to train Actor Critic Network

  Args:
    episodes: list
      Log of episode for all episodes

  Returns:
    Nothing
  """
  all_lengths = []
  average_lengths = []
  all_rewards = []
  entropy_term = 0

  for episode in range(episodes):
    log_probs = []
    values = []
    rewards = []

    state = env.reset()
    for steps in range(num_steps):
      value, policy_dist = actor_critic.forward(state)
      value = value.detach().numpy()[0, 0]
      dist = policy_dist.detach().numpy()

      action = np.random.choice(num_outputs, p=np.squeeze(dist))
      log_prob = torch.log(policy_dist.squeeze(0)[action])
      entropy = -np.sum(np.mean(dist) * np.log(dist))
      new_state, reward, done, _ = env.step(action)

      rewards.append(reward)
      values.append(value)
      log_probs.append(log_prob)
      entropy_term += entropy
      state = new_state

      if done or steps == num_steps - 1:
        qval, _ = actor_critic.forward(new_state)
        qval = qval.detach().numpy()[0, 0]
        all_rewards.append(np.sum(rewards))
        all_lengths.append(steps)
        average_lengths.append(np.mean(all_lengths[-10:]))
        if episode % 50 == 0:
          print(f"episode: {episode},\treward: {np.sum(rewards)},"
                f"\ttotal length: {steps},"
                f"\taverage length: {average_lengths[-1]}")
        break

    # compute Q values
    qvals = np.zeros_like(values)
    for t in reversed(range(len(rewards))):
      qval = rewards[t] + gamma * qval
      qvals[t] = qval

    #update actor critic
    values = torch.FloatTensor(values)
    qvals = torch.FloatTensor(qvals)
    log_probs = torch.stack(log_probs)

    advantage = qvals - values
    actor_loss = (-log_probs * advantage).mean()
    critic_loss = 0.5 * advantage.pow(2).mean()
    ac_loss = actor_loss + critic_loss + 0.001 * entropy_term

    ac_optimizer.zero_grad()
    ac_loss.backward()
    ac_optimizer.step()

  # Store results
  actor_critic.average_lengths = average_lengths
  actor_critic.all_rewards = all_rewards
  actor_critic.all_lengths = all_lengths

Run the model

episodes = 500   # @param {type:"integer"}

env.reset()

num_inputs = env.observation_space.shape[0]
num_outputs = env.action_space.n

actor_critic = ActorCriticNet(num_inputs, num_outputs, hidden_size)
ac_optimizer = optim.Adam(actor_critic.parameters())

actor_critic_train(episodes)
---------------------------------------------------------------------------
TypeError                                 Traceback (most recent call last)
/tmp/ipykernel_47223/2311026764.py in <module>
      9 ac_optimizer = optim.Adam(actor_critic.parameters())
     10
---> 11 actor_critic_train(episodes)

/tmp/ipykernel_47223/2597994127.py in actor_critic_train(episodes)
     22     state = env.reset()
     23     for steps in range(num_steps):
---> 24       value, policy_dist = actor_critic.forward(state)
     25       value = value.detach().numpy()[0, 0]
     26       dist = policy_dist.detach().numpy()

/tmp/ipykernel_47223/1275356442.py in forward(self, state)
     45       Value and Policy Distribution
     46     """
---> 47     state = Variable(torch.from_numpy(state).float().unsqueeze(0))
     48     value = F.relu(self.critic_linear1(state))
     49     value = self.critic_linear2(value)

TypeError: expected np.ndarray (got tuple)

Plot the results

Plot the training performance for Actor Critic

# @title Plot the training performance for Actor Critic


def plot_actor_critic_training(actor_critic, episodes):
  """
  Plot the training performance for Actor Critic

  Args:
    actor_critic: nn.module
      Actor Critic Network whose performance is to be plotted
    episodes: int
      Number of episodes

  Returns:
    Nothing
  """
  window = int(episodes / 20)

  plt.figure(figsize=(15, 4))
  plt.subplot(1, 2, 1)

  smoothed_rewards = pd.Series(actor_critic.all_rewards).rolling(window).mean()
  std = pd.Series(actor_critic.all_rewards).rolling(window).std()

  plt.plot(smoothed_rewards, label='Smoothed rewards')
  plt.fill_between(range(len(smoothed_rewards)),
                   smoothed_rewards - std, smoothed_rewards + std,
                   color='orange', alpha=0.2)

  plt.xlabel('Episode')
  plt.ylabel('Reward')

  plt.subplot(1, 2, 2)
  plt.plot(actor_critic.all_lengths, label='All lengths')
  plt.plot(actor_critic.average_lengths, label='Average lengths')
  plt.xlabel('Episode')
  plt.ylabel('Episode length')
  plt.legend()

  plt.tight_layout()
  plt.show()


plot_actor_critic_training(actor_critic, episodes)
../../../_images/W3D4_Tutorial5_124_0.png

Exercise 3.2.1: Effect of episodes on performance

Change the episodes from 500 to 3000 and observe the performance impact.

Exercise 3.2.2: Effect of learning rate on performance

Modify the hyperparameters related to learning_rate and gamma and observe the impact on the performance.

Be sure to rerun the function definition cells in order to pick up on the updated values.


Section 4: RL in the real world

Time estimate: ~10mins

Video 4: Real-world applications and ethics

Exercise 4: Group discussion

Form a group of 2-3 and have discussions (roughly 3 minutes each) of the following questions:

  1. Safety: what are some safety issues that arise in RL that don’t arise with say, supervised learning?

  2. Generalization: What happens if your RL agent is presented with data it hasn’t trained on (i.e., goes out of distribution)?

  3. How important do you think interpretability is in the ethical and safe deployment of RL agents in the real world?

This should be a very open-ended discussion. Try to have everyone say at least one thing. They can either take these 3 questions in turn, with 3-4 minutes allotted to each, or address them all at once, and allow for a more natural conversation.

Click for solution


Section 5: How to learn more

Video 5: How to learn more


Appendix and further reading

Books and lecture notes

Lectures and course

More practical:


Link to the tweet thread with resources recommended by the community.


This notebook is based on the EEML 2020 RL practical by Feryal Behbahani & Gheorghe Comanici. If you are interested in JAX you should try the colab. If you are interested in Tensorflow, there is also a version of the colab for the MLSS 2020 RL Tutorial that you can try!
